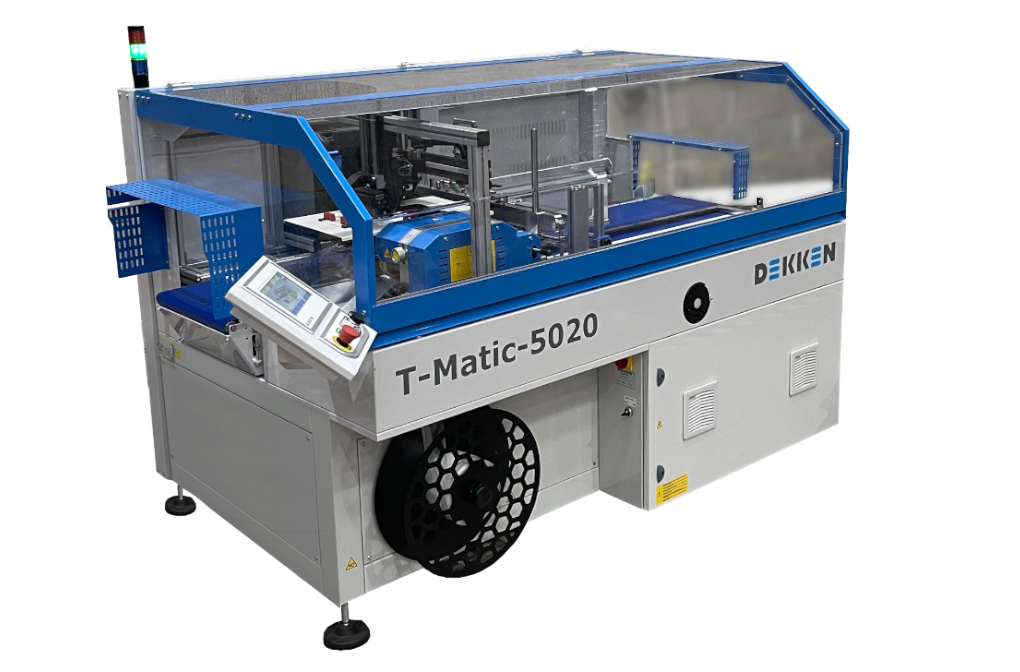

T-Matic-5020

The T-Matic-5020 is a continuous side-sealer specially developed for packaging single or piled textile products.
The side-sealing technology offers several advantages, including more aesthetic seals for a clean presentation of your packaged products, increased production capacity, theoretically unlimited package length, and reduced waste compared to other sealing technologies such as serial packaging machines.

DOWNLOAD PROSPECT

Fully electric, fully flexible

The T-Matic-5020 can be used either in automatic packaging length mode, with which the machine will automatically measure the products length and create packages that fit the product perfecty, or fixed package length mode.

The electrically controlled sealing bar makes setup changes quick and easy as well as consistent thanks to integrated encoders.

The T-Matic-5020 can be equipped with many different options, to best cater to the your packaging needs.

Integrated Sato Label Printer&Applicator

This module, powered by a Sato industrial printer, can print and apply all common types of labels onto packaged products.
Its integration into the T-Matic-5020 not only makes it super compact but also eliminates the risk of packaged products getting lost or removed during transfer from the packaging machine to the labeling machine. This is a critical necessity for all E-Commerce activities. Learn more

IQ-Press

The T-Matic-5020 always comes with needlewheels that can create micro-holes in packages. This allows for a slow release of air that may be trapped inside the sealed packages.

The maintenance-free IQ-Press is for customers who wish to permanently remove air without creating micro-holes in their bags. This may be for aesthetic reasons, to save volume taken up by packaged products, or because the packaging is for shipment and needs to be weatherproof.
The IQ-Press is the industry’s first fully electric air extraction press, which reduces energy consumption compared to traditional vacuum or pneumatic solutions and increases production capacity.

Its sensorless technology eliminates unnecessary points of failure that could be caused in traditional systems by faulty or aging sensors.

E-Commerce Optimization

The E-commerce industry presents a significant challenge for fully automated textile packaging. Therefore, Dekken has collaborated closely with our E-commerce clients, who are leaders in fashion, return handling, print on demand (POD), and other areas, to develop a set of optimized enhancements.

These enhancements include specialized guiding systems, upgraded sensors, the ability to use opaque packaging film, workflow optimizations, and more.

External Conveyor Belts

To accommodate our clients’ workflow, the T-Matic-5020 can be equipped with conveyors at the front and back of the machine.

The conveyors are controlled by the T-Matic-5020, making them easy to implement into your workflow.

For example, a conveyor can be placed between the T-Apparel and the T-Matic-5020 to manually add products to the production flow that do not need to be folded or can only be folded by hand.

Print-Mark Sensor

This sensor detects the position mark of pre-printed packaging film, allowing for precise sealing positioning. This ensures clean bags that look the same as standard poly-bags.

Custom Sealing Systems

Upon request, we can develop special sealing systems that allow for packaging with euro-holes, hanging holes, or other types of seals.

High Capacity Film Folding Unit

This module enables clients to optimize cost and production time by using unfolded packaging film. This reduces procurement costs and doubles the film capacity of the T-Matic-5020.

	Metric	Imperial
Maximum Product Dimensions (WxH)	400x200mm	16x8in
Maximum Production per Hour	up to 2400 pcs. depending on product length and film properties	up to 2400 pcs. depending on product length and film properties
Maximum Production per 8 Hours	up to 19200 pcs. depending on product length and film properties	up to 19200 pcs. depending on product length and film properties
Power Supply	3x 380/415V, 50/60Hz	3x 380/415V, 50/60Hz
Peak Power Consumption	2,3 kWh	2.3 kWh
Machine Length	1545mm	61in
Machine Width	2180mm	86in
Machine Heigth	1655mm	65in
Machine Weight	720kg	1587lb
Customizable Programs	50	50
